[COOLING DEVICE: WC] Unboxing & Review Corsair h100

bejathz

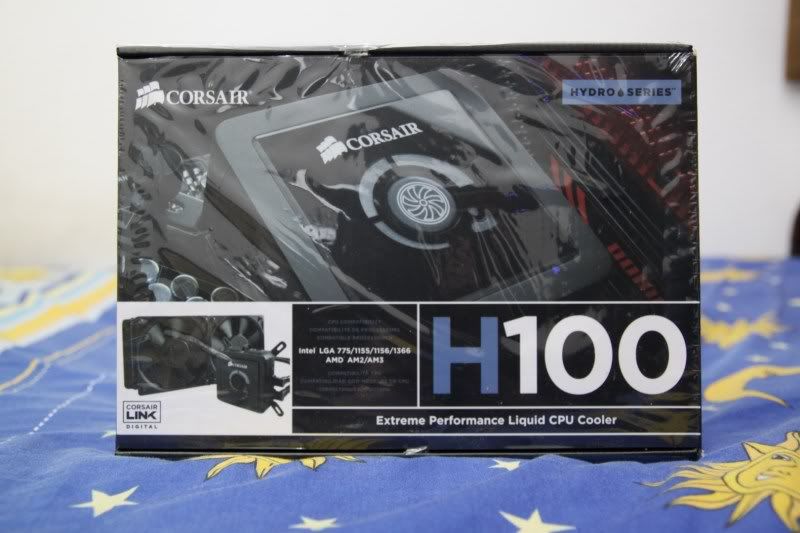

Corsair H100

Extreme Performance Liquid CPU Cooler
-tulisan di box nya gt-

Quote:

sekilas info :
corsair H series, adalah compact wc yang didesain corsair tanpa memerlukan perawatan, seperti mengganti coolant dkk. Fisik nya pun simple hanya terdiri dari waterblock dan radiator, dimana pompa nya menjadi satu dengan waterblock nya sendiri... bla bla bla -basa basi selesai-

Quote:

tech spec :
Warranty : Five years
Cold Plate Material : Copper
Fan Specification : 120mm (x2)
Socket Support : AMD AM2, AMD AM3, Intel LGA 1155, Intel LGA 1156, Intel LGA 1366, Intel LGA 2011, Intel LGA 775
Radiator Material : Aluminum
Tubing : Low-permeability for near-zero evaporation
Radiator Dimensions : 122mm x 275mm x 27mm
Fan Dimensions : 120mm x 120mm x 25mm
Fan Speed : (+/- 10%): up to 1300 RPM (Low Noise), 2000 RPM (Balanced), and 2500 RPM (High Performance)
Fan Airflow : 46 - 92 CFM
Fan dBA : 22 - 39
Fan Static Pressure : 1.6 - 7.7mm/H20

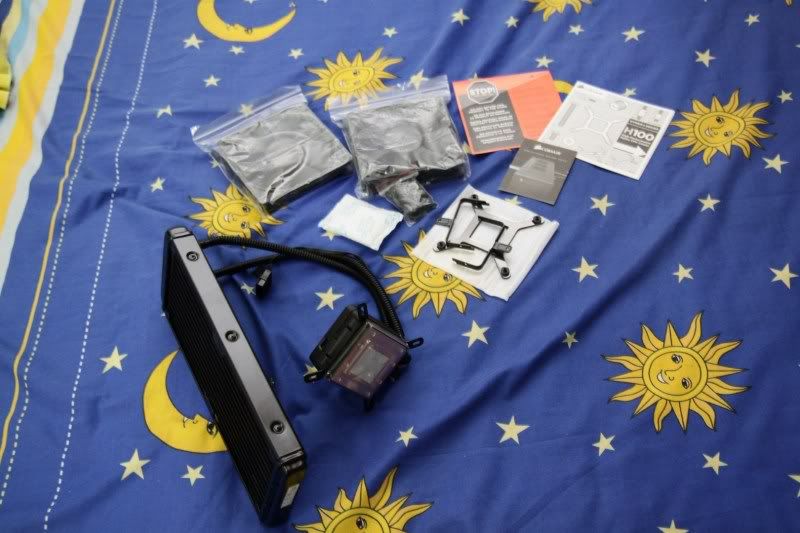

What inside the box?

- 2 biji fan corsair 120mm (12cm)
- radiator and wb
- sepaket mur
- silica gel
- bracket for amd
- backplate for intel
- user manual

Intel i7 920 stock cooling

Quote:
kondisi :
- all default clock
- stressing with prime95
- monitor with coretemp
- thermalpaste : tuniq tx2

spec :
MSI X58 GD65
i7 920 steping C0
OCZ Gold 3x2GB

Quote:

IDLE

Uploaded with ImageShack.us

Quote:

Full Load

note:
begitu prime95 dijalankan suhu langsung melonjak drastis menyentuh angka 90
daripada meleduk, langsung saya stop aja proses nya

Intel i7 920 stock cooling

Quote:
kondisi :
- all default clock
- stressing with prime95
- monitor with coretemp
- thermalpaste : tuniq tx2

spec :
MSI X58 GD65
i7 920 steping C0
OCZ Gold 3x2GB

Quote:

IDLE

Uploaded with ImageShack.us

Quote:

Full Load

By andreasivan89 at 2011-08-10

note:
begitu prime95 dijalankan suhu langsung melonjak drastis menyentuh angka 90
daripada meleduk, langsung saya stop aja proses nya

Conclusion
