Permisi agan2 sekalian, kembali lagi dengan saya. kali ini ane mau gelar lapak untuk Motor Brushless,ESC,Propeller sama Servo. langsung aja Check it out:
Motor Brushless:
[/spoiler]
Spoiler for open this:
Spoiler for open this:
for PENAMPAKAN::
S2830-14 750KV
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
RPM/V 750
Weight with wires 50 grams
Dimensions 28mm x 28mm
Shaft Diameter 3.17mm
Battery 2-3 cell lipo
Max efficiency 80%
Max Laod 10A
Max Power 85W
Includes motor mount and prop adapter
Harga: Rp.150.000
2208-17 1100KV Outrunner Brushless Motor
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
Brand: DYS
Spec: 2208-17
Model: 2822-17
Motor size: Ф28*22mm
Shaft size: Ф3.175*37mm
Weight: 38g
KV(rpm/v): 1100
Max Power: 102W
Battery: 2-3Li-Po
Test Prop: 8x6/7x4
Ri(M Ω): 0.192
ESC(A): 30A
Includes Mounting Hardware
Harga: Rp.165.000
KDA 20-22L Motor Brushless Outrunner
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
Spesifikasi:
-Dimensi: 28x32mm
-Rating: 924kv
-Battery Config: 3 Lipo Cells
-Panjang Shaft: 3.175mm
-Berat: 56gr
-Standar Arus: 6-14A
-Arus Max: 17A
-Suggested Prop: 11x4.7
Harga: Rp235.000
iPower 2814 short shaft 750KV
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
iPower motor : iBM2814-11
Rotational Speed : 750 (kv)RPM/V
Continuous Current : 20.3A
Max. Current : 22.7A
Input Voltage : 6-14.8V
Max. Efficiency : 80%
Internal Resistance : 0.063
Power : 370W
Motor Weight : 108g
Motor size : Ф35*36mm
Shaft : Ф Ф5.0mm
Prop Recomd : 10" x 7/ 11"x4.7/ 12" x 5
Battery Types : Ni-MH/ Li-po
Model weight : 1200-2000g
Harga: Rp295.000

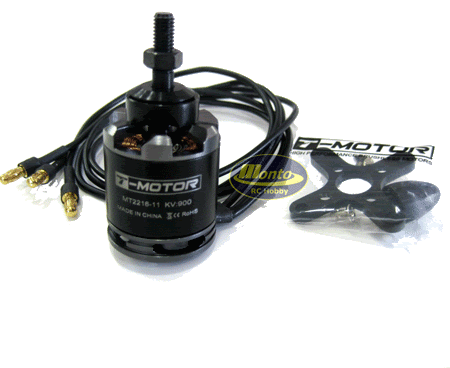

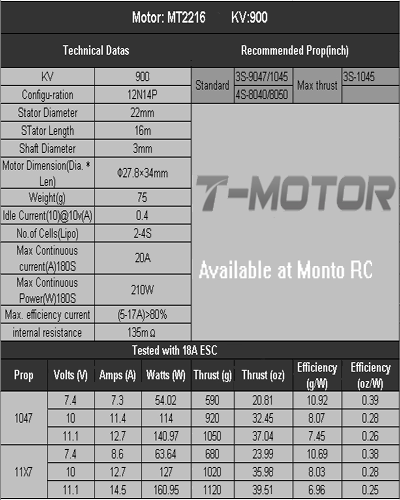

Tiger MT2216 KV900
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
Harga: Rp550.000

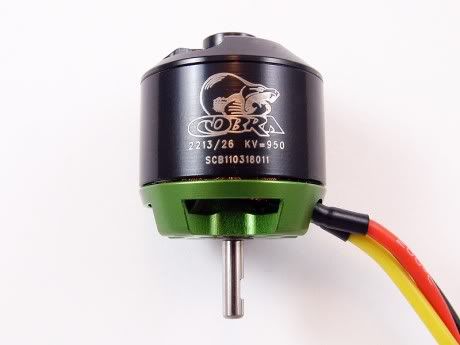

Cobra C-2213/26 Brushless Motor
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
Stator Diameter : 22.0 mm (0.866 in)
Stator Thickness : 13.0 mm (0.512 in)
No. of Stator Arms : 12
No. of Magnet Poles : 14
Motor Wind : 26 Turn Delta
Motor Kv : 950 RPM / Volt
No-Load Current (Io) : 0.45 Amps @ 8 Volts
Motor Resistance (Rm) Per Phase . 0.201 Ohms
Motor Resistance (Rm) Phase to Phase : 0.134 Ohms
Max Continuous Current : 14 Amps
Max Continuous Power on 3S Li-Po : 150 Watts
Weight : 61.0 Grams (2.15 oz)
Outside Diameter : 27.7 mm (1.091 in)
Shaft Diameter : 3.17 mm (0.125 in)
Body Length : 28.0 mm (1.102 in)
Overall Shaft Length : 42.0 mm (1.654 in)
Harga: Rp560.000

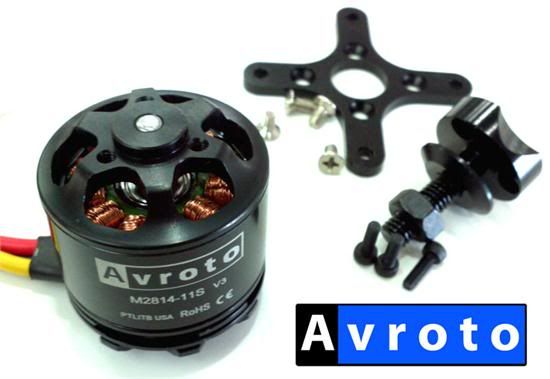

Avroto 2814 Short Shaft
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
Weight approximately 100 grams not including wires.
External Dimensions 35mm D x 36mm L
Stator Dimensions 28mm D x 14mm L
Internal Shaft diameter 4mm.
Prop Adapter diameter 6mm.
No-load speed: 770 rpm / V
Ri (Internal Resistance) 100mΩ
Io (no load current) 0.5A
Voltage for Io measurement 10V
Current capacity 25A/180s
Watts: 350
Lipo cell 3-4
Wire length 600mm
14magnets 12 stator arms 12N 14P
Harga: Rp.660.000
ESC:
Spoiler for open this:
Spoiler for open this:
for PENAMPAKAN::

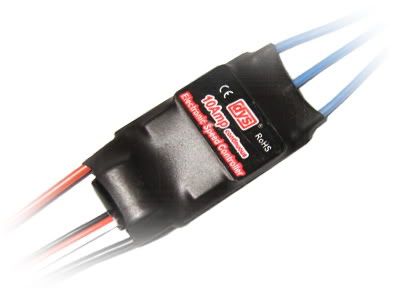

Programmable ESC 10A Brushless Motor
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
Input voltageC 6-16.8V(2-4S Lixx)
BEC:5V 2amp
Running current:10A(Output: Continuous 10A, Burst 12A up to 10 Secs.)
Size: 26mm (L) * 23mm (W) * 7mm (H).
Weight �10g
Programmable Items:
1. Brake Setting��Enabled / Disabled, default is Disabled
2. Battery Type��Li-xx(Li-ion or Li-poly) / Ni-xx(NiMH or NiCd)��default is Li-xx.
3. Low Voltage Protection Mode(Cut-Off Mode)�� Soft Cut-Off (Gradually reduce the output power) or Cut-Off (Immediately stop the output power). Default is Soft Cut-Off.
4. Low Voltage Protection Threshold(Cut-Off Threshold)��Low / Medium / High, default is Medium.
1) For lithium batteries, the number of battery cells is calculated automatically. Low / medium / high cutoff voltage for each cell is: 2.6V/2.85V/3.1V. For example: For a 3 cells lithium pack, when ��Medium�� cutoff threshold is set, the cut-off voltage will be: 2.85*3=8.55V.
2) For nickel batteries, low / medium / high cutoff voltages are 0%/45%/60% of the startup voltage (i.e. the initial voltage of battery pack), and 0% means the low voltage cut-off function is disabled. For example: For a 10 cells NiMH battery, fully charged voltage is 1.44*6=8.64V, when ��Medium�� cut-off threshold is set, the cut-off voltage will be:8.64*50%=4.3V��
5. Startup Mode�� Normal /Soft /Super-Soft, default is Normal.
Normal is preferred for fixed-wing aircraft. Soft or Super-soft are preferred for helicopters. The initial acceleration of the Soft and Super-Soft modes are slower in comparison, usually taking 1 second for Soft startup or 2 seconds for Super-Soft startup from initial throttle advance to full throttle. If the throttle is closed (throttle stick moved to bottom) and opened again (throttle stick moved to top) within 3 seconds of the initial startup, the restart-up will be temporarily changed to normal mode to get rid of the chances of a crash caused by slow throttle response. This special design is very suitable for aerobatic flight when quick throttle response is needed.
6. Timing��Low / Medium / High, default is Low.
Usually, low timing value can be used for most motors. We recommend the Low timing value for 2 poles motor and Medium timing value for motors with more than 6 poles to get a high efficiency. For higher speed, High timing value can be chosen
Harga: Rp.150.000
Maytech 20amp 400Hz Refresh ESC
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
Application: Multicopter, RC Airplane and Helicopters
Cont.Current 20A
Lipo 2-4Cells
Burst Current(10sec) 30A
Net Weight 20g
BEC 5V/2A Linear
Size(mm)(L x W x H) 33x24x6
Programe Device Transmitter/Programe Card
MT20A-BEC-V1 is a new generation of brushless and sensorless speed controllers with the control of micro processor. Its performance in terms of compatibility, reliability and stability can compete with world famous brands.
Harga: Rp.250.000
Propeller:
Spoiler for open this:
Spoiler for open this:
for PENAMPAKAN::

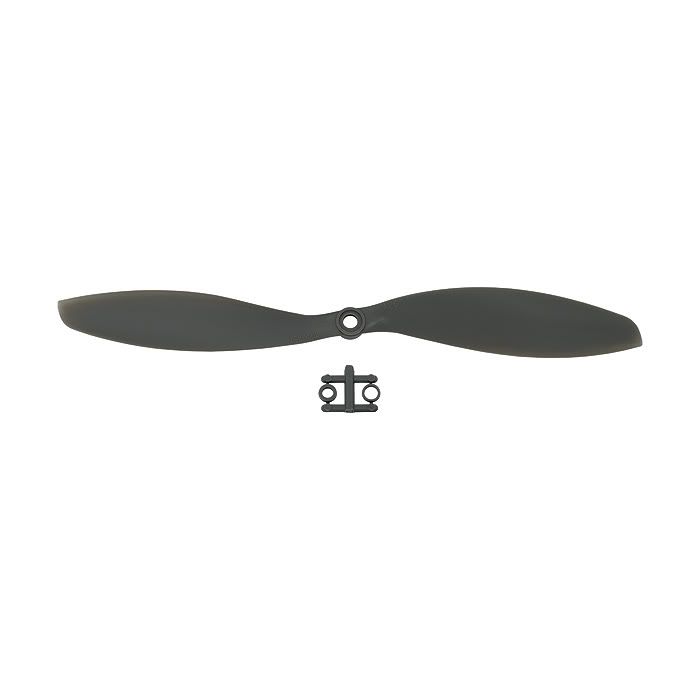

APC Propeller 10x4.7 Slow Flyer
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
Length - 10"
Pitch - 4.7
Max RPM - 6,500
Tensile Strength - 24.0 KSI
Tensile Elongation - 6%
Flexural Strength - 38.0 KSI
Flexural Modulus - 2.3 MSI
Harga: Rp.40.000

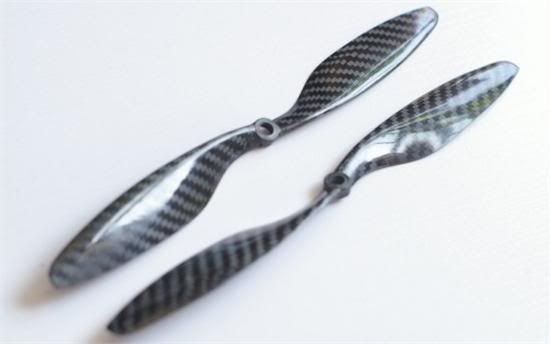

Carbon Fiber 1045 slow flyer
Spoiler for open this:
Spoiler for open this:
for Spesifikasi::
Gemfan Full Carbon Fiber 10x4.5R Slow Fly Propeller (reverse)
6mm bore. Includes reducer rings for 5mm and 4mm.
catatan: pada gambar terlihat 2 buah propeller, namun penjualannya tetap per unit
