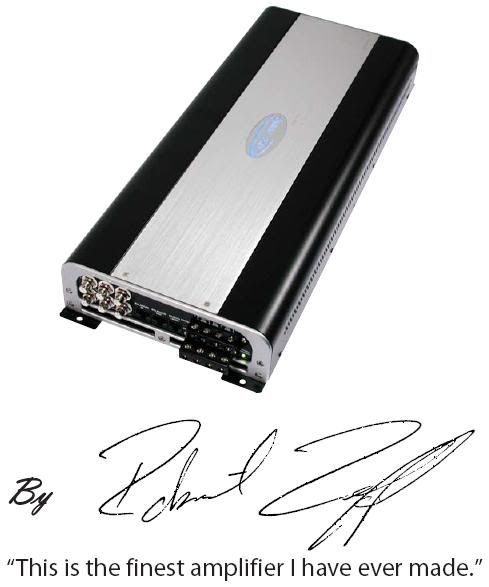

JUAL [SOLD OUT !! ] ARC Audio SE4100 - Signature Edition

MukaMacho

SOLD OU T!! SOLD OUT !!

Dijual Power untuk SQ.. seri TOP alias Pemungkas dari ARC Audio USA, ARC Signature Edition; Design by Robert Zeff (Perancang Car Amplifier TOP Dunia)

Kalau kualitas suara boleh ditanya tuh

Kelengkapan Unit Doank.. No Box No Manual.. Masih Segel by Massindo.

dijual berhubung boil mau di jual.. sayang juga hiks hiks

Harga nya : SOLD OUT !!

Overview :

* Audiophile sound quality based design

* Designed by Robert Zeff

* Class A/B switching design

* Microprocessor controlled design

* Microprocessor controlled Code based flashing diagnostics

* Concealed adjustment controls

* Open architecture adjustable crossovers on all channels HP/BP/LP/FP

* 12/24Db per octave selectable crossover slopes on all channels

* Internal chassis force cooled speed controlled fan for optimum cooling

* Hi/Low level balanced switchblade RCA inputs for maximum system integration

* RJ45 Ethernet input connections for true balanced input connections

* Block type terminal connections

* 256 color user selectable illumination circuit

* Combined Bias circuit and temperature regulation circuit to regulate bias and lower THD at any point in total thermal cycle

* Microprocessor high voltage power supply allows the amplifier to optimize power output at different ohm loads without the loss of efficiency or sound quality

* Vdrive based preamp stage improves efficiency lower internal signal loss

* Hand picked output devices used on all SE amplifiers.

Spesifikasi :

4 Channels @ 4 0hms 4 x 65 watts

4 Channels @ 2 0hms 4 x 110 watts

4 Channels @ 1 0hms 4 x 86 watts

2 Channels @ 8 0hms 2 x 125 x 2watts

2 Channels @ 4 0hms 2 x 215 watts (bridged)

2 Channels @ 2 0hms 2 x 146 watts (bridged)

Frequency Response : 4Hz - 100KHz

Crossover Range : 30Hz - 550Hz (x10 300Hz - 5500Hz)

Bass Boost : 0 - 15dB @ 20Hz-80Hz

Fuse : 40A x 2

S/N Ratio (a wtg) ref 1Wall 40hm : >93 dB

Seperation @ 1kHz : >70 dB

Dampeninig (25W 2x40hm 100Hz) : >1200

Low Level Imput Sensitivity .3V - 4V

Balanced Input Sensitivity .6V - 8V

High Level Input NA

Idle Current 1.50A

Dimensions 15 1/2 "(L) X 8"(W) X2 1/2"(H)

Diskusi Tentang SE 4100 :

http://www.ceriwis.com/showthread.php?t=67755

http://www.ceriwis.com/showthread.php?t=67044

http://www.ceriwis.com/showthread.php?t=67484

Siapa cepat dia dapat....

Monggo....

Peminat Serius boleh SMS ke : 08126446888

Dagangan Lainnya:

Subwoofer Genesis Audiophile 25.01 - Barang Hi-End Langka

Subwoofer ARC XTREME 12.4 DVC - SOLD OUT
