JUAL Atlona AT-H2H-44M (44 HDMI Matrix Switcher)

[FAC27]

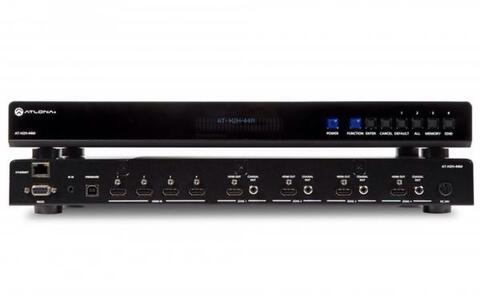

Atlona AT-H2H-44M (44 HDMI Matrix Switcher)
Rp. 16.000.000
Beli Nego

Lokasi : Jawa Barat Kondisi : New Posted on : 06-08-2016 21:18 Terjual : 0 barang telah terjual Dilihat : 33 kali Berat : 3000 gram Last Sundul : 06 August 2016, 09:18:53 PM


Penjelasan Produk



Atlona HDMI Matrix Switcher

Model Number: AT-H2H-44M (44 HDMI Matrix Switcher)



The Atlona AT-H2H-44M is an 4-input, 4-output HDMI matrix switcher featuring support for AV signals with resolutions up to 1080p/60 and with full 3D pass-through, embedded multi-channel audio, and Audio Return Channel capability.

It features an extensive, internal library of EDID settings plus EDID learning to ensure compatibility between sources and displays.

Each output features an S/PDIF port for audio de-embedding of source signals connected to the matrix or an Audio Return Channel from sources connected to the display.

Set-up and control of the matrix is simplified with a powerful, web GUI. The AT-H2H-44M is ideal for multi-display and multi-zone applications in residential and commercial settings.



OVERVIEW

EDID management

- Ensures EDID communication between sources and displays

- Features an internal library of 12 EDID modes and an EDID learning function that can be customized for any connected component



Complete control

- Easily control the matrix via TCP/IP, RS-232, and GUI; works with most major control systems

- Included handheld IR remote control plus IR input port for remote placement of included IR receiver

- SDDP enabled for easy set up and compatibility with Control4 systems



Web GUI

- An easy to use TCP/IP Web GUI allows network configuration, EDID preset configuration, HDCP support status, RS-232 set-up, and I/O switching

- Simplifies matrix set-up and control



Four, flexible S/PDIF ports

- Each S/PDIF port is tied to an output zone and can be used for either an Audio Return Channel from the display or for source audio de-embedding

- ARC enables a source connected to a display to route audio back through the HDMI connections to an AVR or zone amp connected to the S/PDIF port



Additional features

- Full 3D, Dolby TrueHD, and DTS-HD Master Audio pass through

- S/PDIF for audio loop out

- Audio Return Channel (ARC) pass through

- Dual purpose wall/rack mount ears included



SPECIFICATIONS:

Video: 480i@60Hz, [email protected]/60Hz, 576i@50Hz, 576p@50Hz, 720p@Hz, Hz, 1080p@Hz

VESA: Hz, Hz, Hz, Hz, Hz, Hz, Hz, Hz, Hz, Hz, Hz, Hz

Colorspace: RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color depth: 8-bit, 10-bit, 12-bit



Audio

Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio

Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz



Distance

HDMI 8-bit: up to 15 meters/ up to 50 feet

HDMI 12-bit: up to 10 meters/ up to 30 feet



Signal

Bandwidth: 6.75 Gbps

CEC: No

HDCP: Compliant



Temperature

Operating: 0C to 40C/ 32F to 104F

Storage: -20C to 60C/ -4F to 140F

Humidity: 20 to 90% non-condensing



Power

Consumption: 20.6W

Idle Consumption: 1.8W



Supply

Input: AC100~240V 50/60Hz

Output: DC 24V/2.7A



Dimension

H x W x D: 44 x 433.8 x 255 (mm)/ 1.73 x 17.08 x 10.04 (inch)

W/feet: 55.15 x 433.8 x 255 (mm)/ 2.17 x 17.08 x 10.04 (inch)



Weight

Device: 2.88kg/ 6.35lbs

Shipping: 7.04kg/ 15.51lbs



Certification

Power Supply: CE, FCC, cULus



Ports

HDMI

Features: 3D, 1080p, Dolby TrueHD, DTS-HD Master Audio



RJ45

Control: TCP/IP w/GUI and optional SDDP



S/PDIF

Audio Formats: PCM 2Ch, LPCM 5.1, Dolby Digital, DTS 5.1



USB B

Use: Firmware updating



Bagi yang minat/order, silakan PM untuk harga nego

NEGO SAMPAI DEAL



contact WA/SMS 089516074730

• hdmi

.* .*
