for
M4A88T-M:
CPU
AMD AM3 Phenom� II/Athlon� II/Sempron� 100 Series Processors
Supports AM3 45 nm CPU
Supports CPU up to 140 W
AMD Cool 'n' Quiet� Technology
Chipset
AMD 880G/SB710
Memory
4 x DIMM, Max. 16GB, DDR3 1866(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to
www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows� 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows� OS when you want to install 4GB or more memory on the motherboard.
* AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz.
System Bus
Up to 5.2 GT/s HyperTransport� 3.0
Graphic
Integrated ATI Radeon� HD 4250 GPU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 85 Hz
Maximum shared memory of 1024 MB
Dual independent displays support with HDMI/DVI and D-Sub
Hardware Decode Acceleration for H.264, VC-1, and MPEG-2
Blu-ray playback support *1
Supports DirectX 10.1, OpenGL 2.0, Shader Model 4.1, Universal Video Decoder (UVD) 2.0
Multi-GPU Support
Supports AMD CrossFireX� Technology
Expansion Slots
1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI
Storage
AMD SB710 controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue
6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 10, JBOD
LAN
Realtek� 8111E , 1 x Gigabit LAN Controller(s), featuring AI NET2
Audio
VIA VT1708S 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB Ports
Built-in Controller :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)
Overclocking Features
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS Power Design :
- ASUS EPU-4 Engine
Turbo Key
TurboV
Core Unlocker
Auto Tuning *2
GPU NOS
ASUS Exclusive Features :
- MemOK!
- Anti-Surge
- Express Gate
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Q-Fan
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
Accessories
User's manual
I/O Shield
1 x UltraDMA 133/100 cable(s)
2 x SATA 3Gb/s cable(s)
BIOS
16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WOL by PME,WOR by PME,WOR by Ring,PXE
Support Disc
Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Alasan dijual karena ane udah pindah haluan ke intel gan, jadi mending dijual aja Motherboardnya.
Tanggal pembelian :
23-Apr-2011
Nota pembeliannya masih ada gan
Kondisi :
Masih bagus banget gan, gak pernah service-service selama ane pake
100% Working Well
Garansi Resmi ASTRINDO

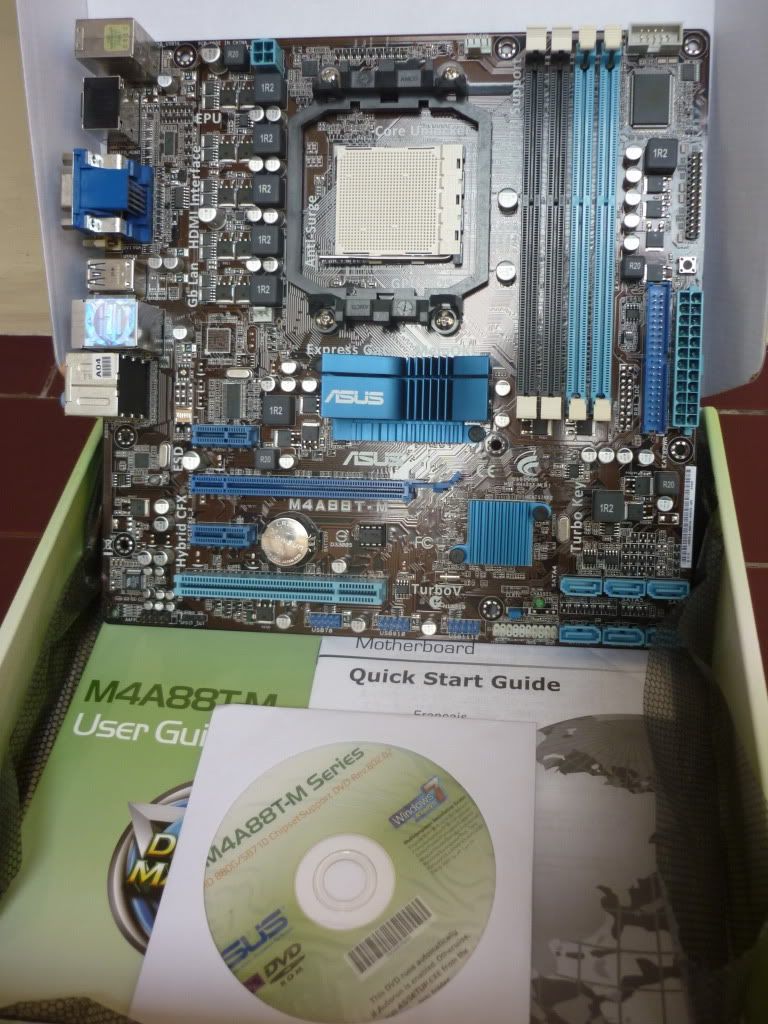

Kelengkapan :
1. 2 x SATA 3Gb/s cables
2. 1 x UltraDMA 133/100 ATA cable
3. Back Panel (I/O Shield)
4. 1 x DVD Driver ASUS
5. Manual Book
*Semua original bawaan dari beli, hanya minus stiker asus nya aja, karena udah ane pake

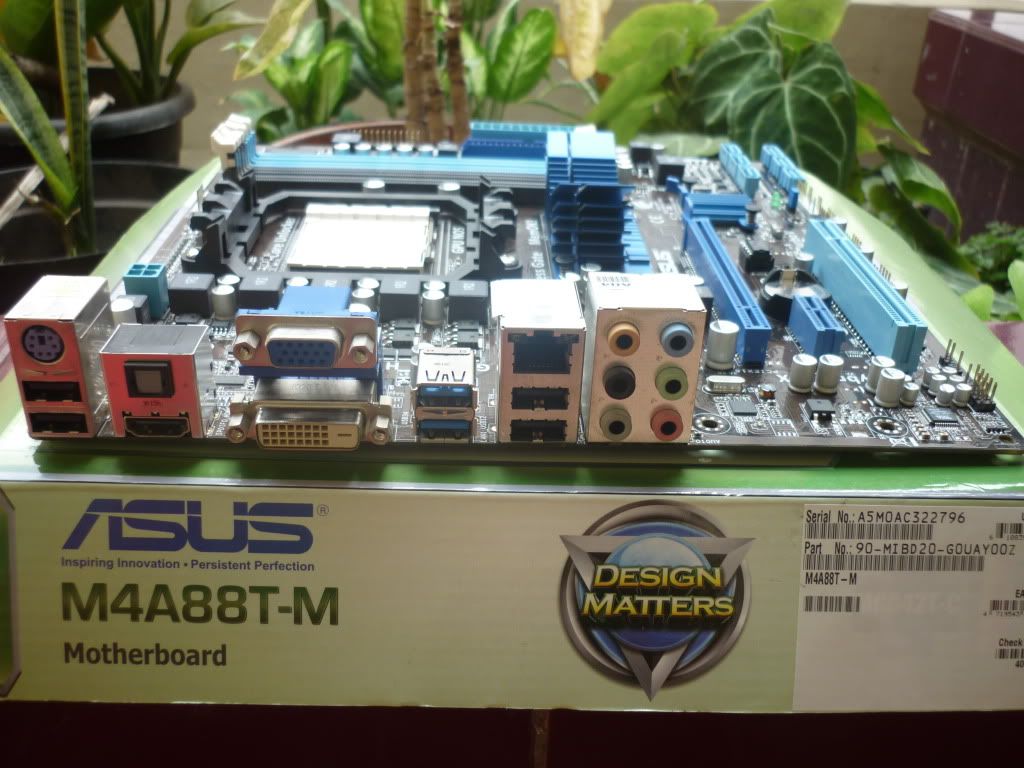

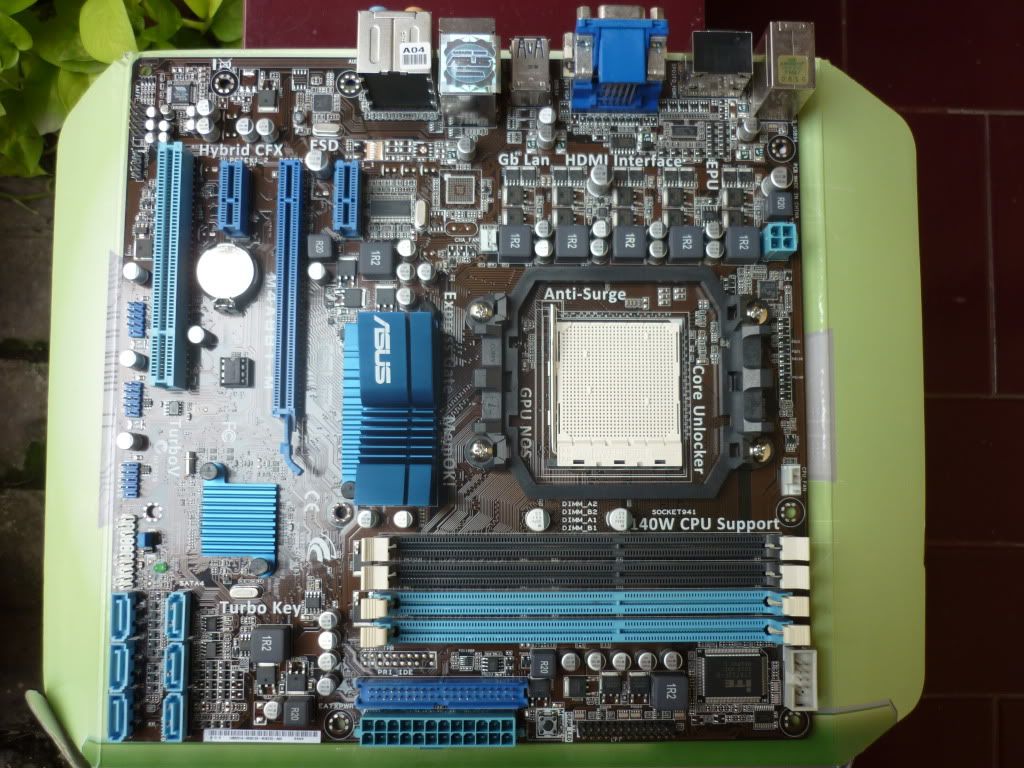

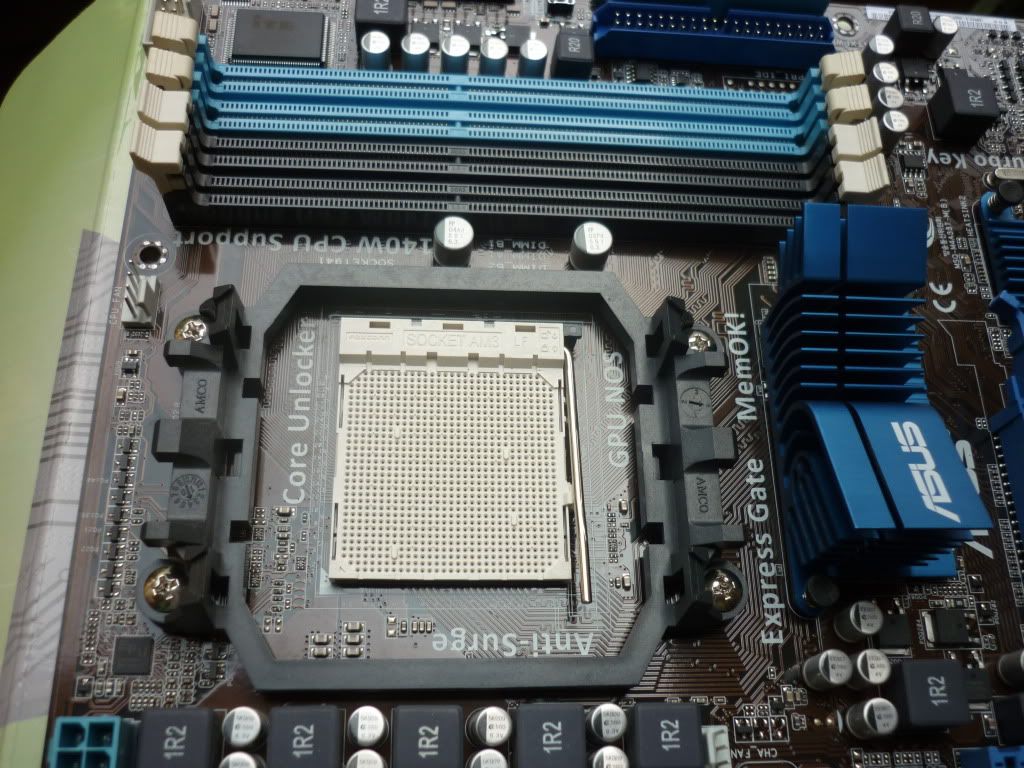

Berikut penampakan barangnya :
- maaf agak BW killer -
