JUAL Onboard Intel atom Dual Core JW-D525M-GT

mejakantors

Kondisi Barang : Baru

Harga :

Lokasi Seller : DKI Jakarta

Description :

numpang jualan laGI

Motherboard JW-D525M-GT

spesifikasi :

Onboard Intel atom dual core, DDR3, VGA, 2sata, 4USB, PCIe, 2PCI

[/spoiler][spoiler=open this] for full spek::

Brand J&W

Model JW-D525M-GT

Processor

Built in with Intel� Dual-core Atom� D525 processor (1.8 GHz)

1M L2 cache

Support Intel Hyper-Threading Technology

Chipset

Intel� NM10 (Built-in Intel� GMA 3150 graphics)

Realtek� RTL8111DL 10/100/1000 Mbps PCIe Ethernet Controller

Realtek ALC662/661 6-Channel HD Audio Codec

Front Side Bus

800MHz FSB

Memory

Type: DDR3 800MHz support

Max capacity: 8GB

DIMM slot: 2

Internal I/O Connectors

1 x 20-pin ATX power connector

2 x SATA II 3Gb/s connectors

1 x CPU fan header

1 x System fan header

1 x Front panel header

1 x Front panel audio header

2 x USB 2.0 header for additional 4 USB 2.0 ports (by cables)

1 x Speaker header

1 x S/PDIF Out header

Expansion Slot

1 x PCI Express x16 slot (running at x2 speed limited by the chipset)

2 x PCI slots

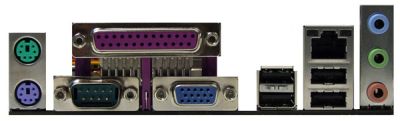

Rear Panel I/O

1 x PS/2 Keyboard port

1 x PS/2 Mouse port

1 x Printer port

1 x Serial port

1 x VGA port

4 x USB 2.0 ports

1 x RJ-45 LAN port

3 x Audio jacks (Line In/ Line out/ Microphone)

Form Factor

Micro-ATX

215mm (W) x 170mm (L)

H/W Monitoring

Winbond W83627DHG-P

System health status auto-detect and reported by BIOS

BIOS

1 x 8Mbit flash ROM, AMI BIOS

Warranty 2 Year Limited Warranty

Pembelian akhir desember 2011 (blom 2bulan gan)

dipakai buat test masuk kardus lagi,

dijual karena spek tidak sesuai kebutuhan gan.

kelengkapan seperti baru, garansi masih panjang dari ane seminggu

penampakan dari google dulu sama persis kok gan

harga : 550.000 nego tipis

cp: 0856 47 666 111 / 021 400 66 111
