JUAL Mixer gemini cd-19r pro club mixer

frodofrog

Kondisi Barang : Second

Harga :

Lokasi Seller : DKI Jakarta

Description :

JUAL GEMINI CD-19R PRO CLUB MIXER

KONDISI SANGAT BAGUS, MADE IN USA

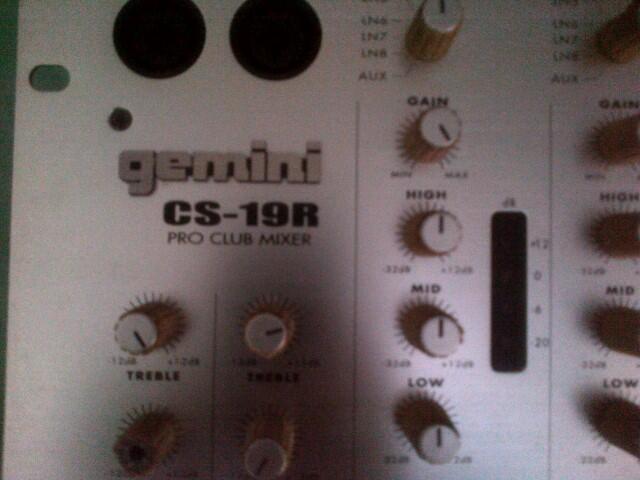

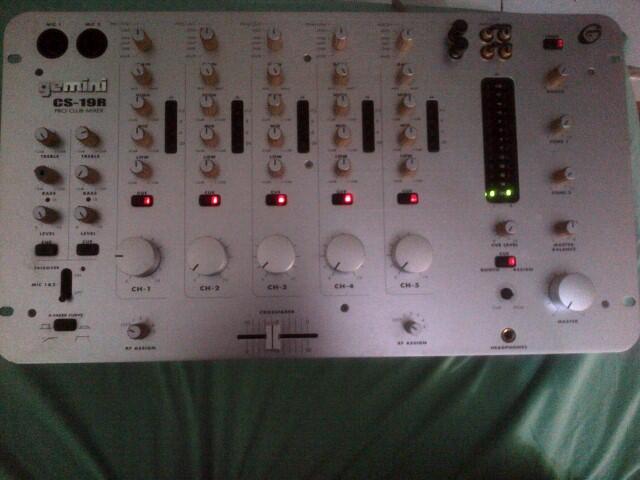

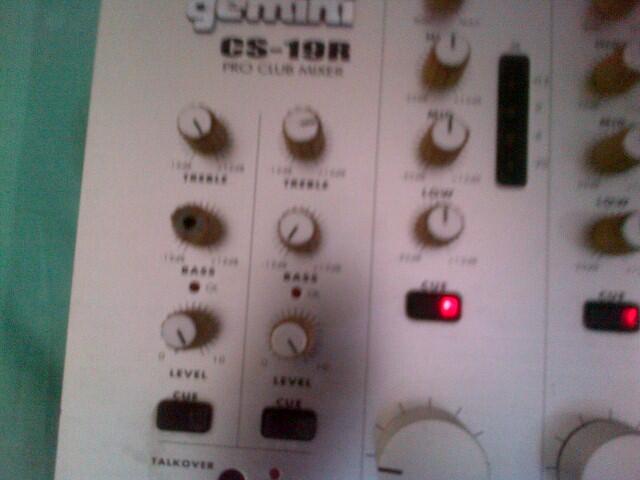

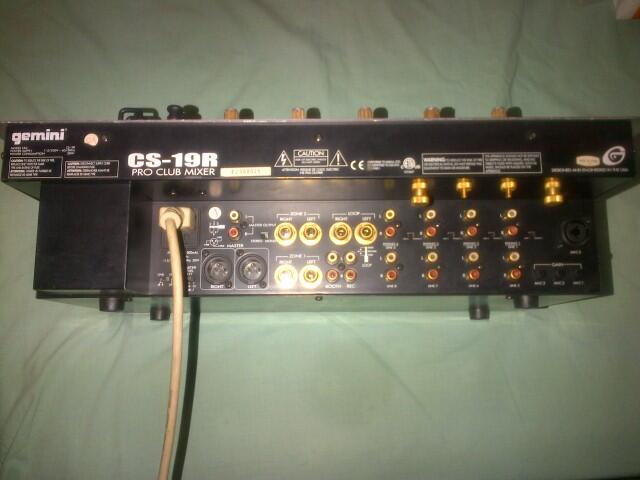

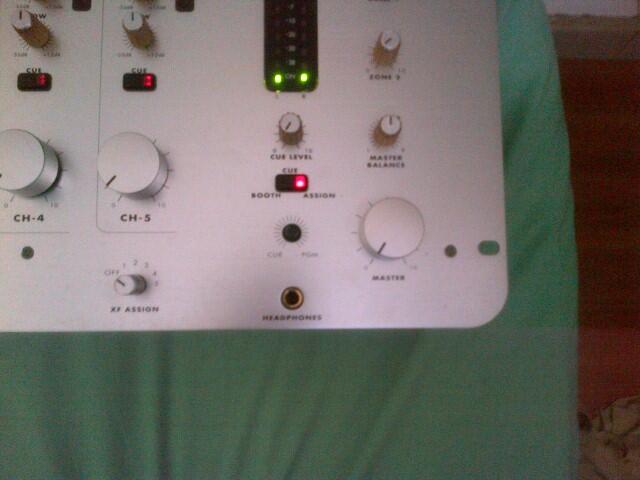

PICT :

MINUS :

KNOB SELECTOR HILANG 1. TAPI SELECTOR BERFUNGSI DGN BAIK

FAST RESPON : 081283005221 / 02191985128

HARGA Rp.3.000.000,- NEGO TIPIS

COD KALIBATA JAKSEL

spec:

19" Professional Stereo Club Preamp Mixer

Rotary Faders for Smooth Blending

5 Channels & Master With Individual LED VU Meters

Bass, Mid, Treble With 32dB Cut Features, & Gain for Every Channel

4 phono / 8 Line / 3 Mic Inputs

Individual EQ Controls & Talkover on Mic 1 & Mic 2 (Level, Bass &, Treble)

Mic 3 Integrated Within Channel 5 Controls

3 Balanced Dual Microphone Inputs (XLR or 1/4")

3 Additional Microphone Gain Controls on Back Panel

3 Levels for Master Level Attenuation

Master Stereo/Mono Mode

Push-Button Illuminated Cueing

Cue Program & Level Rotary Control

Illuminated Cue Booth Assign Switch

4 Outputs: Master, Zone 1, Zone 2, & Booth

1 Balanced Main Output (XLR) & 1 RCA Output

Balanced Zone 1 & Zone 2 Output

Rec Output for Recording

Ground Lift Switch

Dual Voltage Switch

Auxiliary Input Located on Top Panel

1/4" FX Send/Return Loop Located on Back Panel

Additional RCA Loop Input/Output With Switch on Top panel

Gold 1/4", RCA, & Ground Screw Connectors for Better Conductivity

5 Channel Assignable PRO RAIL-GLIDE Crossfader

Illuminated Crossfader Curve Switch

INPUTS:

Phono: 4.5mV

47Kohm Mic 1, 2, 3: 2.5mV, 2Kohm, Balanced

Line: 150 mV 27Kohm

Aux: 150 mV 27 Kohm

OUTPUTS:

Master/Zone 1, 2 (Balanced/Unbalanced): 0 dB 2V, 400ohm

Booth(Unbalanced): 0dB, 1V, 400ohm

Max: 20V Peak to Peak

Rec: 150mV 5Kohm

Infrasonic Filter: 15Hz, 18dB/Octave

GENERAL:

Bass(Mic1,2): � 12dB

Treble (Mic 1, 2): � 12dB

Gain (Mic 1, 2, 3): 0 to -40dB

Low (Channels 1-5) :+ 12dB/- 32 dB

Mid (Channels 1-5): + 12dB/- 32 dB

High (Channels 1-5 ): + 12dB/- 32 dB

Gain (Channels 1-5): 0 to -30dB

Master Output Attenuation: 0dB, -6dB, -12dB

Frequency Response: 20Hz - 20KHz +/- 2dB

Distortion: Less Than 0.02%

S/N Ratio: Better than 80dB

Talkover Attenuation: 16dB

Power Source: 115/230V 50/60Hz 20W

Unit Dimensions: W 19� x H 10.5� x D 4.75� (483 x 267 x 120mm)
