Default SAMWOO Commercial Electric Ice Shaver SIS-11

Kondisi Barang : Baru

Harga :



Lokasi Seller : DKI Jakarta


Description :

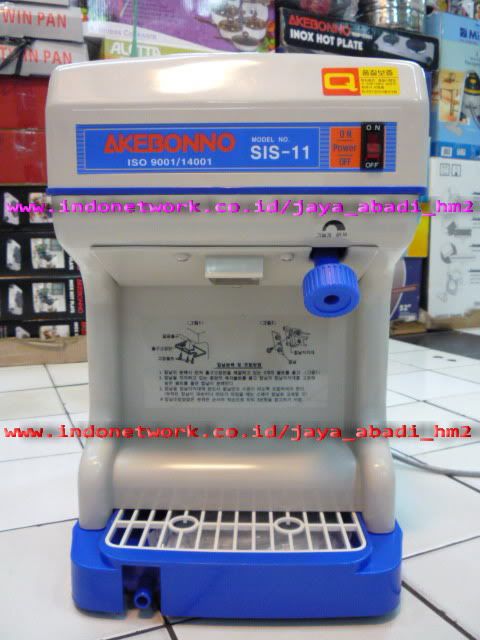

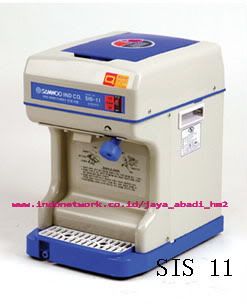

SAMWOO Commercial Electric Ice Shaver SIS-11





The ice shaver and crusher are designed with a smart appearance and convenient structure. Since the required volume of cocktail ice are input in making red bean sherbet, it is very sanitary and economical. When its lid is open in operating it, it stops automatically.



Specification



* Model NO. : SIS - 11

* Dimension ( W x L x H) : 285 x 370 x 420mm

* Voltage : AC 220V

* Power Consumption : 230W

* Rated Current : 3A

* Weight : 20kg

* Crushing Rate : 1.5/ 1.8kg/ Min

* Ice Input : 1kg






[/spoiler]
Spoiler for open this:
Spoiler for open this:
for Gambar Produk:















[spoiler=open this] for Operating Manual and Technical Details:






ICE SHAVER



1.Operating Manual and Technical Details



- Operation Manual



1. Plug in when power switch is off

2. Close lid after putting proper amount of ice cubes into inlet

3. Turn on the power switch on the right side (start motor operation)

4. Adjust the thickness of ice using blade control handle

(Precautions)

A. When starting operation, make sure to close lid before turning on the power

B. Add ice cubes when machine stops

C. Put ice cubes to 1 cm below red cover inside lid

D. Evenly place ice cubes inside of inlet

(If ice cubes lean to one side, this can cause machine vibration)

5. When the slicing lever is turned to the right, ice cubes are sliced. When it is turned to the left, ice slicing stops and ice crushing starts. (Slicing and crushing is applied to SCS-35; other type)



- Precautions



1. Make sure to close inlet lid before turning on power

2. Add ice cubes when motor stops

3. Evenly place ice cubes inside inlet

(If ice cubes lean to one side or a big piece of ice is put in, this can cause machine vibration or poor results)

4. Do not take out ice cubes in the inlet container with hands

(In case of machine malfunction, this can cause an accident)

5. Machine automatically stops when inlet lid is open



- Overload

When it is overloaded, fuse burns out and the machine stops

(Check fuse and change it before operation)



- Usage

Restaurants, Bakeries, Caf�s, Hotels, Sushi Bars, etc.
