JBL W12GTi 4000W Kevlar-impregnated paper woofer Differential Drive 12 inch Subwoofer







JBL just launched the most powerful subwoofer on earth - JBL W12GTi

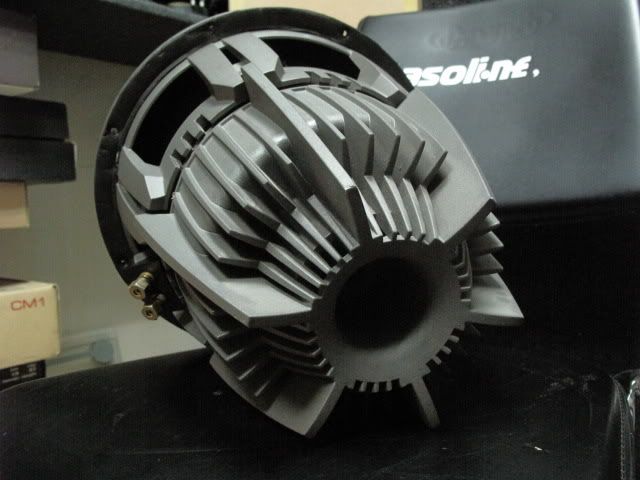

The JBL W12GTi uses cast aluminum heat-sink cooled magnet system - for an extreme power handling. W12GTi also has a differential Drive System - consisting of dual-edgewound voice-coil and dual-gap technology for a doubling of Power Handling, Sensitivity and an "electrical brake" to control cone motion at extreme excursions. More than +/- 20mm linear cone excursion - provides extremely high sound pressure levels.



JBL W12GTi uses Symmetrical-Field-Geometry (SFG) - reduces distortions to minimum at any leve. The aquaplas coated cone - for exceptionally stable performance even at extreme levels, and finally Butyl rubber surround used on W12GTi - for better sound quality and long durability Two separate gold plated screw/plug terminals - provide long lasting electrical connections



JBL W12GTi MK features



12" GTi MK Differential Drive� Design Subwoofer

Dual Voice coil design (dual 6-ohm, pre-wired as a 3-ohm sub)

Differential Drive� Design (DDD) motor

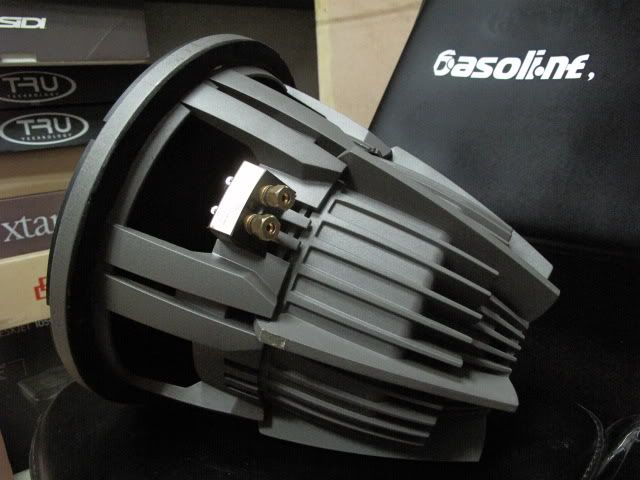

Die-cast vented basket

Kevlar-impregnated paper woofer cone

Nitrile-butylene surround

Power handling RMS: 700 watts

Power handling Peak: 4,000 watts

Sensitivity 91dB @ 2.83V/1m

Power Handling 700W RMS, 4,000W Peak

Frequency Response 18Hz ~ 1kHz

Impedance 3 or 12 ohms

Voice-Coil Diameter 3" (76mm)

Mounting Depth 10-1/4" (260mm)

Overall Diameter 12-1/4" (312mm)

Cut-Out Diameter 11" (280mm)

Displacement 0.149 ft3 (4.23 l)
