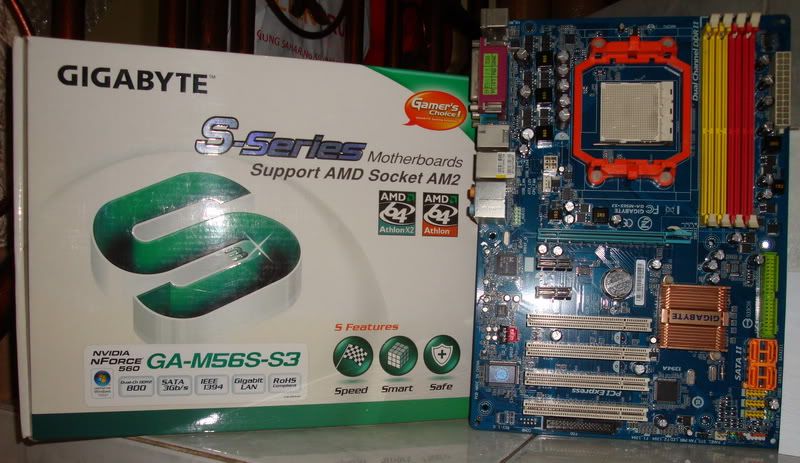

JUAL MOBO Gigabyte GA-M56S-S3 Socket AM2 & PROC AMD Athlon 64 X2 4800+ 2.51 GHz

jampasir

Kondisi Barang : Baru

Harga :

Lokasi Seller : DKI Jakarta

Description :

permisi semuanya...mau jual mobo neeh..

speck dan gambar bisa langsung dilihat di bawah....

kondisi : 95%

Motherboard Specifications :

CPU

Support for Socket AM2+/ AM2 processors: AMD Phenom�FX/ AMD Phenom�/ AMD Athlon� 64 FX/AMD Athlon� 64 X2 Dual-Core/AMD Athlon� 64/AMD Sempron�

Chipset

North Bridge:

NVIDIA� nForce 560

Super I/O: ITE IT8716

Realtek 8211BL Gigabit Ethernet

TI IEEE 1394

Realtek ALC888 8-channel audio codec

Memory

4 x DDRII DIMM slots up to 16GB

Supports dual channel DDRII 800 / 667 / 533 / 400 DIMM

Supports 1.8V DDRII DIMM

Expansion Slots

1 x PCI Express x16

2 x PCI Express x1

4 x PCI

Internal I/O Connectors

1 x Chassis Intrusion connector

1 x IDE

3 x USB 2.0/1.1 (support 6 ports)

4 x SATA II 3Gb/s

2 x IEEE 1394a (supports 2 ports)

1 x SPDIF in/out

1 x power LED connector

1 x front audio connector

1 x front panel connector

1 x system fan connector

1 x CPU fan connector

1 x 4-pin ATX 12V power connector

1 x 24-pin ATX power connector

1 x CD in

1 x FDD

Back Panel Connectors

1 x SPDIF out (optical)

1 x SPDIF out (coaxial)

1 x IEEE 1394

6 x audio ports (Line In / Line Out / MIC In / Surround Speaker Out(Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)

4 x USB 2.0/1.1

1 x serial port (COM A)

PS/2 (Keyboard/Mouse)

1 x LPT

1 x RJ45 LAN

H/W Monitoring

CPU/System fan speed detect

CPU fan failure warning

CPU/System warning temperature

System voltage detection

CPU Smart Fan control

CPU temperature detection

BIOS

4 Mbit flash ROM

Licensed AWARD� BIOS

Unique Features

@BIOS�

Supports EasyTune

Xpress� Recovery 2

Virtual Dual BIOS (Xpress BIOS Rescue)

Xpress� Install

Download Center

Q-Flash�

Power

ATX power connector and ATX 12V connector

Form Factor

ATX, 305mm x 214mm

fast respon:

hp:081586111696
