[iphone25]

Kondisi Barang : Bekas

Harga :



Lokasi Seller : Jawa Tengah


Description :



Permisi ane mau jualan lagi nih gan mobo Intel LGA 1155

ASROCK H61M-VS

suport intel core i3/i5/i7/ sandy bridge

[/spoiler]

Spoiler for open this:

Spoiler for open this:

for spec:






Product Specifications

General

CPU - Supports 2nd Generation Intel� Core� i7 / i5 / i3 in LGA1155 Package

- Supports Intel� Turbo Boost 2.0 Technology

- Supports Intel� K-Series CPU

- Supports Hyper-Threading Technology

Chipset - Intel� H61

Memory - Dual Channel DDR3 memory technology

- 2 x DDR3 DIMM slots

- Supports DDR3 1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 16GB*



*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows� 32-bit OS. For Windows� 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment

Audio, Video and Networking

Graphics - Supports Intel� HD Graphics Built-in Visuals : Intel� Quick Sync Video, Intel� Clear Video HD Technology, Intel� HD Graphics 2000/3000, Intel� Advanced Vector Extensions (AVX)

- Pixel Shader 4.1, DirectX 10.1

- Max. shared memory 1759MB

- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz



*Due to chipset limitation, the Blu-ray playback of Intel� HD Graphics is only supported under Windows� Vista� and Windows� 7.

Audio - 5.1 CH HD Audio (VIA� VT1705 Audio Codec)

LAN - Atheros PCIEx1 LAN AR8152

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE

Expansion / Connectivity

Slots - 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)

- 1 x PCI Express 2.0 x1 slot

Connector - 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions

- 1 x Print port header

- 1 x COM port header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature - ASRock Extreme Tuning Utility (AXTU)

- Instant Boot

- ASRock Instant Flash

- ASRock AIWI

- ASRock APP Charger

- SmartView

- ASRock XFast USB

- Hybrid Booster:

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

- Combo Cooler Option (C.C.O.)

- Good Night LED

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Creative Sound Blaster X-Fi MB - Trial

Accessories - Quick Installation Guide, Support CD, I/O Shield

- 2 x SATA Data Cables (optional)

Hardware Monitor - CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor - Micro ATX Form Factor: 8.9-in x 6.8-in, 22.6 cm x 17.3 cm

- Solid Capacitor for CPU Power

OS - Microsoft� Windows� 7 / 7 64-bit / Vista� / Vista� 64-bit / XP / XP 64-bit compliant

Certifications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

Spoiler for open this:

Spoiler for open this:

for CPU SUPPORT LIST:






CPU Support List

Processor Info Since BIOS

Socket Family Number Core Frequency BLK Cache Power

1155 Core i7 i7-2700K(D2) Sandy Bridge 3.5GHz BLK 100MHz 8MB 95W P1.40

1155 Core i7 i7-2600K(D2) Sandy Bridge 3.40GHz BLK 100MHz 8MB 95W All

1155 Core i7 i7-2600(D2) Sandy Bridge 3.40GHz BLK 100MHz 8MB 95W All

1155 Core i7 i7-2600S(D2) Sandy Bridge 2.80GHz BLK 100MHz 8MB 65W All

1155* Core i5 i5-2550K(D2) Sandy Bridge 3.4GHz BLK 100MHz 6MB 95W P1.40

1155 Core i5 i5-2500K(D2) Sandy Bridge 3.30GHz BLK 100MHz 6MB 95W All

1155 Core i5 i5-2500(D2) Sandy Bridge 3.30GHz BLK 100MHz 6MB 95W All

1155 Core i5 i5-2500S(D2) Sandy Bridge 2.70GHz BLK 100MHz 6MB 65W All

1155 Core i5 i5-2500T(D2) Sandy Bridge 2.30GHz BLK 100MHz 6MB 45W All

1155* Core i5 i5-2450P(D2) Sandy Bridge 3.2GHz BLK 100MHz 6MB 95W P1.50

1155 Core i5 i5-2405S(D2) Sandy Bridge 2.5GHz BLK 100MHz 6MB 65W P1.10

1155 Core i5 i5-2400(D2) Sandy Bridge 3.10GHz BLK 100MHz 6MB 95W All

1155 Core i5 i5-2400S(D2) Sandy Bridge 2.50GHz BLK 100MHz 6MB 65W All

1155 Core i5 i5-2390T(Q0) Sandy Bridge 2.70GHz BLK 100MHz 3MB 35W All

1155* Core i5 i5-2380P(D2) Sandy Bridge 3.1GHz BLK 100MHz 6MB 95W P1.50

1155 Core i5 i5-2320(D2) Sandy Bridge 3.0GHz BLK 100MHz 6MB 95W P1.20

1155 Core i5 i5-2310(D2) Sandy Bridge 2.9GHz BLK 100MHz 6MB 95W All

1155 Core i5 i5-2300(D2) Sandy Bridge 2.80GHz BLK 100MHz 6MB 95W All

1155 Core i3 i3-2130(Q0) Sandy Bridge 3.4GHz BLK 100MHz 3MB 65W P1.20

1155 Core i3 i3-2125(D2) Sandy Bridge 3.3GHz BLK 100MHz 3MB 65W P1.20

1155 Core i3 i3-2120(Q0) Sandy Bridge 3.30GHz BLK 100MHz 3MB 65W All

1155 Core i3 i3-2105(D2) Sandy Bridge 3.1GHz BLK 100MHz 3MB 65W P1.10

1155 Core i3 i3-2100(Q0) Sandy Bridge 3.10GHz BLK 100MHz 3MB 65W All

1155 Core i3 i3-2100T(Q0) Sandy Bridge 2.50GHz BLK 100MHz 3MB 35W All

1155 Pentium G860(Q0) Sandy Bridge 3.0GHz BLK 100MHz 3MB 65W P1.20

1155 Pentium G850(Q0) Sandy Bridge 2.9GHz BLK 100MHz 3MB 65W P1.10

1155 Pentium G840(Q0) Sandy Bridge 2.8GHz BLK 100MHz 3MB 65W P1.10

1155 Pentium G630(Q0) Sandy Bridge 2.7GHz BLK 100MHz 3MB 65W P1.20

1155 Pentium G630T(Q0) Sandy Bridge 2.3GHz BLK 100MHz 3MB 35W P1.20

1155 Pentium G620(Q0) Sandy Bridge 2.6GHz BLK 100MHz 3MB 65W P1.10

1155 Pentium G620T(Q0) Sandy Bridge 2.2GHz BLK 100MHz 3MB 35W P1.10

1155 Celeron G540(Q0) Sandy Bridge 2.5GHz BLK 100MHz 2MB 65W P1.10

1155 Celeron G530(Q0) Sandy Bridge 2.4GHz BLK 100MHz 2MB 65W P1.10

1155 Celeron G530T(Q0) Sandy Bridge 2.0GHz BLK 100MHz 2MB 35W P1.20

1155 Celeron G460(Q0) Sandy Bridge 1.8GHz BLK 100MHz 1.5MB 35W P1.50

1155 Celeron G440(Q0) Sandy Bridge 1.6GHz BLK 100MHz 1MB 35W P1.10

The CPU with "*" without GPU integrated, need an individual VGA card when use it.









Kondisi:

* Normal



Kelengkapan:

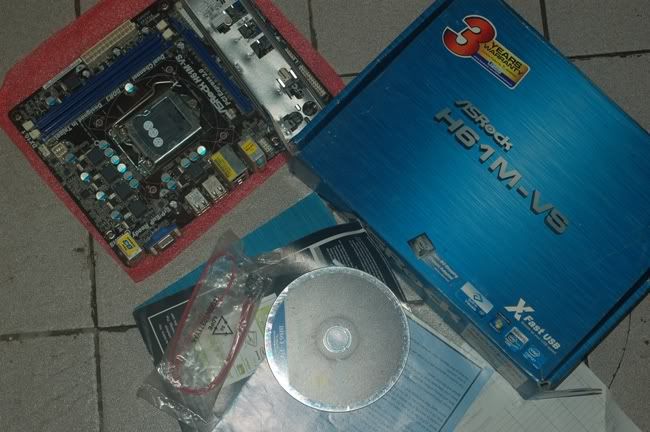

*Komplit (dus, back panel, kabel sata, cd, manual)



Garansi:

* Panjang (pembelian mei 2011)

Spoiler for open this:

Spoiler for open this:

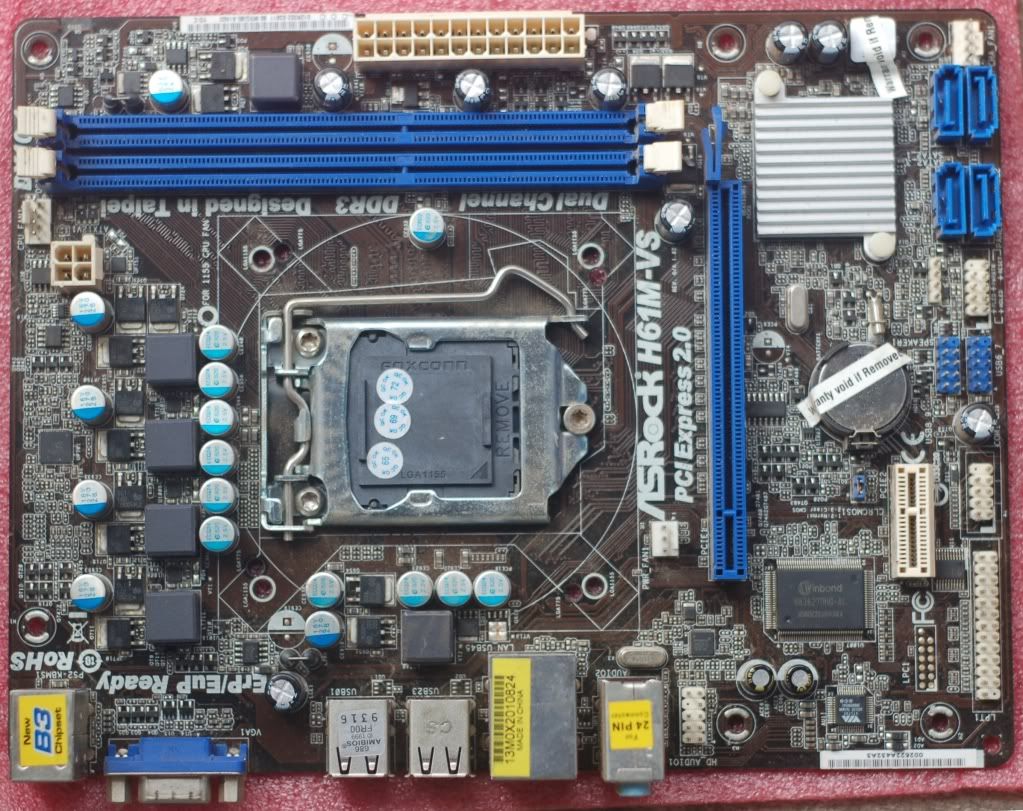

for pic::
































Harga:



SOLD BY COD

Sold kurang dari sejam







Thanks Kaskus



Testi:

[spoiler=open this] for testimoni:







[/quote]

Quote:



Originally Posted by orang_baekk



barangnya mantab gan,, udah murah, tapi dpt barang bagus, tadinya cod ampe saling tunggu menunggu hahaha, terimakasih atas keramahannya gan, ane akui buat agan yang satu ini emang bgt, hahaha

Quote:



Agan Lambeholic

Quote:



Originally Posted by lambeholic



sold to me



recommended seller

Quote:



Agan Lidut

Quote:



Originally Posted by lidut

deal 2 jam langsung kirim begitu cepat bgt agan ini sampe rumah esok nya lagi sepesial deh ga sungkan ane kasih testi ini ane nyatakan agan recomend bgt deh

:recse l

Quote:



Agan nanno69

[quote]






Originally Posted by nanno69



sory mas bro...agak telat ngasih testinya..

biasa keasyikan ngegame sekaligus ngetes procienya + Ramnya..

ternyata barang dr agan MAk NYOOOSSSSSSSSSss......

gak salah dech klo mo beli ma agan yg atu ni,,

pokoke ane nobatkan agan yug atu niRECOMENDED SELLEEERRR
