Specifications
CPU Intel� Socket 1155 for 2nd Generation Core� i7/Core� i5/Core� i3 Processors
Supports Intel� 32 nm CPU
Supports Intel� Turbo Boost Technology 2.0
* The Intel� Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to
www.asus.com for CPU support list
Chipset Intel� H61(B3)
Memory 2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel� Extreme Memory Profile (XMP)
* The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market.
* Refer to
www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows� 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows� OS when you want to install 4GB or more memory on the motherboard.
Graphic Integrated Graphics Processor
VGA output support : RGB port
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Supports DirectX 10.1
Expansion Slots 1 x PCIe 2.0 x16
3 x PCIe 2.0 x1
Storage Intel� H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue
LAN Realtek� 8111E , 1 x Gigabit LAN Controller(s)
Audio Realtek� ALC 887 8-Channel High Definition Audio CODEC *1
USB Ports Intel� H61(B3) chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Overclocking Features Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special Features ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- Low EMI Solution
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)
Internal I/O Ports 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

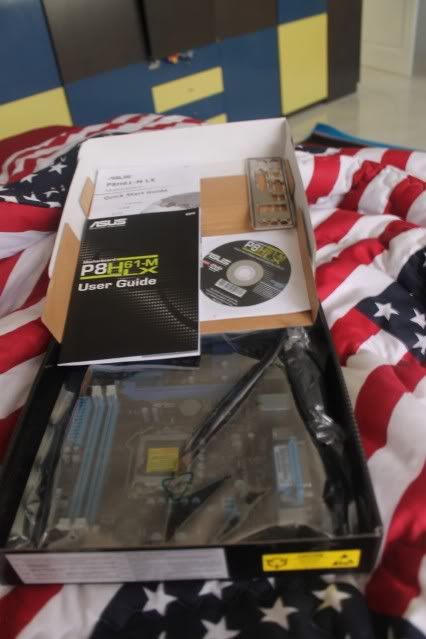

Accessories User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
BIOS 32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2.0a, Multi-language BIOS
Support Disc Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Form Factor uATX Form Factor
9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm )
Note *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

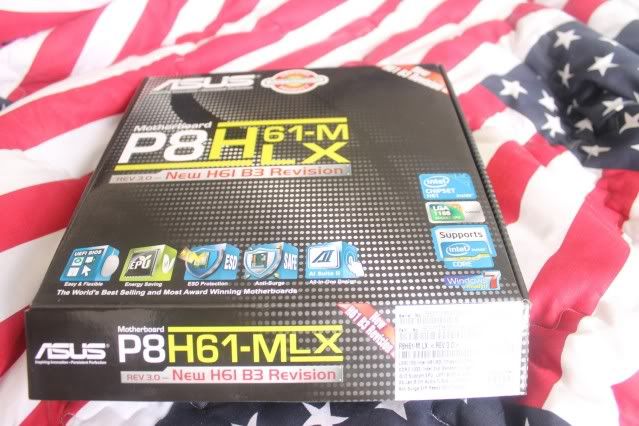

for gambar asli:
