Muscle Power PSU Product (OEM Seasonic) JEMBER
Kondisi Barang : Baru
Harga :
Lokasi Seller : Jawa Timur
Description :
MUSCLE POWER PRODUCT
Happy and Safe Online Shopping With Us !!!
Warning !!! Harga di bawah salah dan masih bisa NEGO.. Bukan FJB KASKUS namanya kalau gak bisa NEGO..
CONTACT US !!! KAMI BERI ANDA HARGA TERBAIK !!!!!
Garansi 5 Tahun Full Replace !!! Termasuk bilamana terbakar/konslet karena listrik (bukan karena kesalahan colok kabel).
*catatan : GARANSI HANYA BERLAKU SELAMA SEGEL GARANSI UTUH.
Hal-hal lain di luar itu, perlu kebijakan khusus.

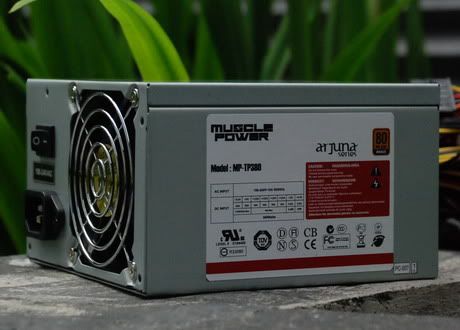

1. Muscle Power
Arjuna 380 Watt - $ 38
READY !!!
[/spoiler]
Spoiler for open this :
for
arjuna :
Muscle Power MP-380 Active PFC Arjuna Series Features:
� Specification compliance: ATX12V v2.3
� Support the latest Intel & AMD Socket
� PCI Express & Serial ATA ready
� Double forward converter circuit
� High efficiency and reliability
� Low ripple & noise
� Super low noise fan control
� Short circuit protection on all outputs
� Over voltage protection & Over power protection
� 100% hi-pot test
� 100% burn in, high temperature cycled on/off
Electrical Specifications:
� Input frequency: 47/63 Hz
� Inrush current, cold start: 100A max.
� Efficiency: at normal input voltage .82%
� Line regulation: +/-1% typical
� Load regulation: +/-5% typical
� Cross regulation: +/-5% typical
� Ripple / noise: 1%
� MTBF, full load @ 25. amb. Excluding the DC fan:
>100k hrs
� Power Factor Correction: 99% typical
Dimension: L150 x W140 x H86mm (5.9� x 5.5� x 3.4�)
Connectors: Main Power (24/20P) x 1, ATX12V (4P) x 1, Peripherals: SATA (3), MOLEX (5), FDD(1), PCIE 6pin (1)
Safety : CUL, TUV, CB, CCC
EMC : CE, FCC, C-tick
2. Muscle Power
Bima 430 Watt - $ 45
READY !!!
Spoiler for open this :
for
Bima :
Muscle Power MP-430 Active PFC Bima Series Features:
� Specification compliance: ATX12V v2.3
� Support the latest Intel & AMD Socket
� PCI Express & Serial ATA ready
� Double forward converter circuit
� High efficiency and reliability
� Low ripple & noise
� Super low noise fan control
� Short circuit protection on all outputs
� Over voltage protection & Over power protection
� 100% hi-pot test
� 100% burn in, high temperature cycled on/off
Electrical Specifications:
� Input frequency: 47/63 Hz
� Inrush current, cold start: 100A max.
� Efficiency: at normal input voltage .82%
� Line regulation: +/-1% typical
� Load regulation: +/-5% typical
� Cross regulation: +/-5% typical
� Ripple / noise: 1%
� MTBF, full load @ 25. amb. Excluding the DC fan:
>100k hrs
� Power Factor Correction: 99% typical
Dimension: L150 x W140 x H86mm (5.9� x 5.5� x 3.4�)
Connectors: Main Power (24/20P) x 1, ATX12V (4P) x 1, Peripherals: SATA (2), MOLEX (6), FDD(1), PCIE 6 pin(1)
Safety : CUL, TUV, CB, CCC
EMC : CE, FCC, C-tick

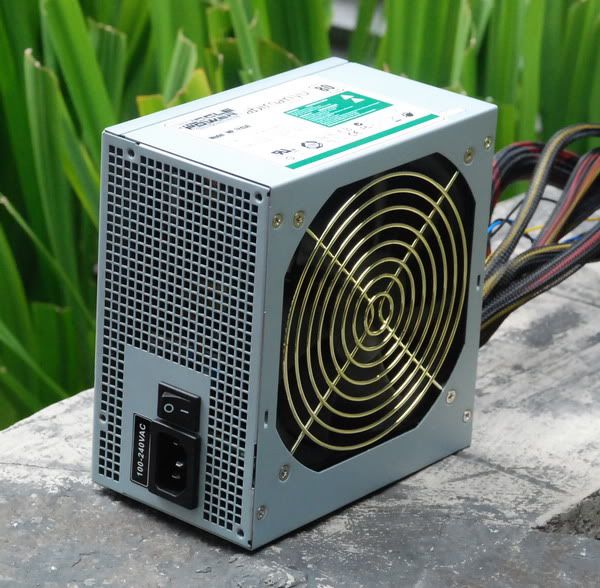

3. Muscle Power
Abimanyu 450W $ 50
Ready !!! (12cm Fan,Sleeving)
Spoiler for open this :
for
Abimanyu :
Komposisi Kabel :
ATX 24 pin :1
4 pin 12V :1
SATA :4
Molex :6
PCIe 6 pin :1
FDD :1
+ conector Power Fan (model 3 pin +molex)

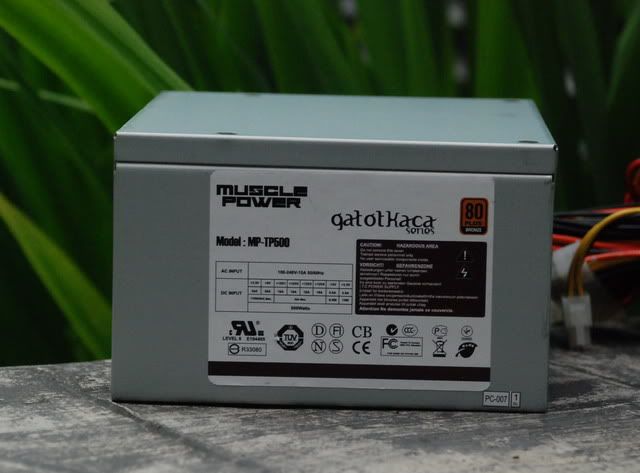

4. Muscle Power
Gatotkaca 500 Watt - $ 55
READY !!!
Spoiler for open this :
for
Gatotkaca :
Muscle Power MP-500 Active PFC Gatotkaca Series Features:
� Specification compliance: ATX12V v2.3
� Support the latest Intel & AMD Socket
� PCI Express & Serial ATA ready
� Double forward converter circuit
� High efficiency and reliability
� Low ripple & noise
� Super low noise fan control
� Short circuit protection on all outputs
� Over voltage protection & Over power protection
� 100% hi-pot test
� 100% burn in, high temperature cycled on/off
Electrical Specifications:
� Input frequency: 47/63 Hz
� Inrush current, cold start: 100A max.
� Efficiency: at normal input voltage .82%
� Line regulation: +/-1% typical
� Load regulation: +/-5% typical
� Cross regulation: +/-5% typical
� Ripple / noise: 1%
� MTBF, full load @ 25. amb. Excluding the DC fan:
>100k hrs
� Power Factor Correction: 99% typical
Dimension: L150 x W140 x H86mm (5.9� x 5.5� x 3.4�)
Connectors: Main Power (24/20P) x 1, ATX12V (8P/4P) x1 / x1, Peripherals: SATA(4), MOLEX(6), FDD(1), PCIE 6pin(2)
Safety : CUL, TUV, CB, CCC
EMC : CE, FCC, C-tick
5. Muscle Power
Yamadipati 500W $ 61 Ready !!! (8cm Fan,Sleeving,Black)
Spoiler for open this :
for
Yamadipati :
Komposisi Kabel :
ATX 24 pin :1
4 pin 12V :1
EPS 12V : 1
SATA :6
Molex :7
PCIe 6 pin :1
PCIe 8 pin : 1
FDD :1
+ conector Power Fan (model 3 pin +molex)

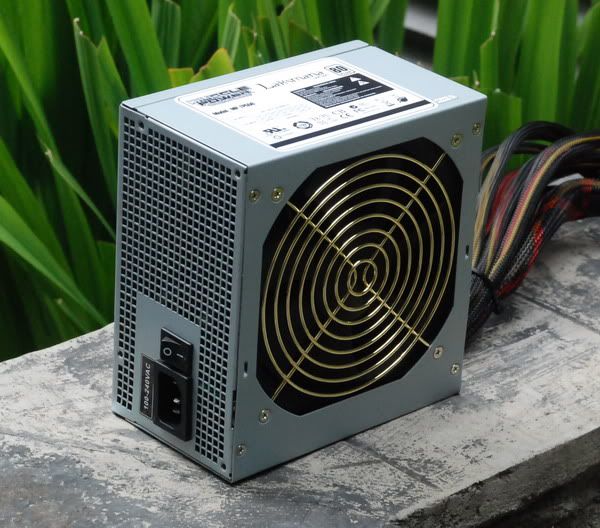

6. Muscle Power
Laksmana 550W $ 65
Ready !!! (12cm Fan,Sleeving)
Spoiler for open this :
for
Laksmana :
Komposisi Kabel :
ATX 24 pin :1
4 pin 12V :1
EPS 12V :1
SATA :4
Molex :6
PCIe 6 pin :2
FDD :1
+ conector Power Fan (model 3 pin +molex)
7. Muscle Power
Khrisna 650 Watt - $80 -
Ready !!! (12cm Fan,Sleeving)
Spoiler for open this :
for
Khrisna :
Komposisi Kabel :
ATX 24 pin :1
4 pin 12V :1
EPS12V :1
SATA :4
Molex :6
PCIe 6 pin :1
PCIe 8 Pin :1
FDD :1
+ conector Power Fan (model 3 pin +molex)
8. Muscle Power
Yudhistira 750watt $ 88
Ready !!! (8cm Fan)
9. Muscle Power
850 Watt $ 100
Ready !!! (12cm Fan,Sleeving) 80+
10. Muscle Power
Bhisma 1200W $ 194
Ready !!! (12cm Fan,Sleeving) 80+
11. Muscle Power
Ares 650W $ 86
Ready !!! (12cm Fan,Sleeving) 80+
12. Muscle Power
Hades 750W $ 100
Ready !!! (12cm Fan,Sleeving) 80+
13. Muscle Power
Hermes 850W $ 115
Ready !!! (12cm Fan,Sleeving) 80+
Spoiler for open this :
for
PSU baru :
Spoiler for open this :
for
Short Review :
Thanks To : Mr. Joxus Winner
Specification :
* INTEL CORE I7 920 DEFAULT
* DFI LP DK X58-T3EH6
* GALAXY GTS 295
* F3-12800CL9D-4GBRL
* WD 320GB SATAII
Saya melakukan test PSU Muscle Power 380 Watt dengan 2 Pembanding PSU yang dilabel dan disebutkan true power yang memiliki daya sama. Ketiga psu tersebut saya tes menggunakan software OCCT dan furmark GPU burn test yang dijalankan bersamaan dan dibantu dengan multi tester digital. System yang digunakan berbasis intel core I7 dan VGA multi display (GTX 295). Kita tahu bahwa system tersebut dikenal sangat haus dengan power, untuk itu saya jadikan untuk mencoba seberapa kuatkah psu-psu tersebut.
Muscle Power Arjuna 380W
Idle :
rail 12v arjuna memang lebih rendah dibanding 2 pesaingnya yang pada saat idle berada dikisaran 12.2v, namun hal yang menarik bukanlah hal tersebut.
Arjuna 380watt ternyata mampu bertahan di OCCT dan furmark dengan menyingkirkan dua pesaingnya yang tidak kuat mengangkat hardware yang saya pakai karena KO atau mati langsung setelah OCCT dan furmark dijalankan...
Berikut sekedar gambaran rail 12v ketika full load di system saya dengan spesifikasi diatas,
Rail tersebut adalah rail terendah yang saya ambil gambarnya. Masih cukup bagus karena masih diatas 11.5v dengan beban yang tentunya tidak bisa anda bayangkan untuk diangkat dengan psu 380watt
Spoiler for open this :
for
Review Abimanyu :
link
[spoiler=open this] for
Review Bhisma :
link
lanjut di bawah
