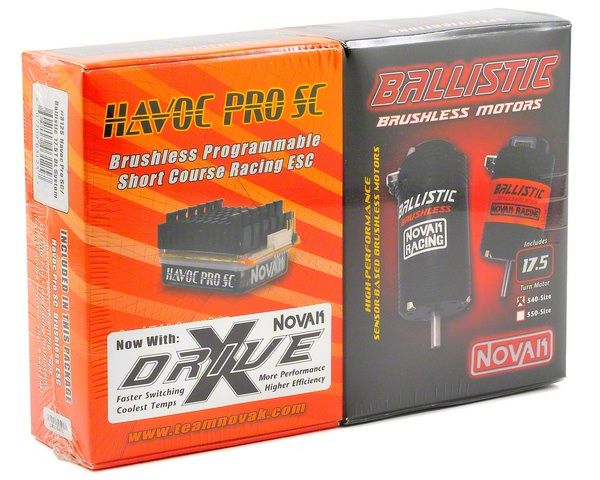

Default Novak Havoc Pro SC Brushless ESC/Ballistic 550 Motor Combo w/X-Drive (4.5T)(SC10 4x4\

Kondisi Barang : Baru

Harga :



Lokasi Seller : Jawa Timur


Description :



Permisi agan2 yg cakep , ane mo jual neh Kinetic Ballistic Brushless Motor ..

Ready stock , Stock banyak sekali

Reseller are welcome


[/spoiler]
Spoiler for open this:
Spoiler for open this:

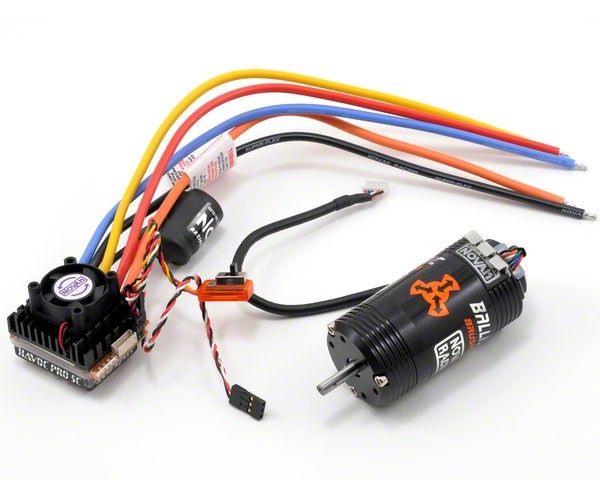

for penampakan:




















Spoiler for open this:


Havoc Pro SC System Features:



Updated with Novak X-Drive� for enhanced throttle response, ultra-smooth power delivery, higher top speeds, and cooler operating temperatures.

Multiple adjustable parameters via on-board programming: Minimum Brake (0-30%), Drag Brake (0-30%), Minimum Drive (0-15%), Timing Level (0-42�), Timing Set Point (19,500-4,000), Dead Band (2-8%), Throttle Curve (Linear/Expo), Brake Curve (Linear/Expo), Brake Frequency (1.67-13.7 KHz), Brake End Point (10-100%), Drive Frequency (16-7 KHz), Reverse, Motor Rotation, Voltage Cut-Off, Hall Sensor Test

On-board Hall Sensor Test to easily and quickly verify that the motor's sensors are working properly

NovaBrakes� provide instantaneous braking under any timing condition

Sensor-based for excellent torque and low-speed driveability

Allowed by ROAR for 4WD Short Course racing

Built-in diagnostic temperature monitoring to quickly check the ESC's operating temperature at any time.

User friendly One-Touch programming interface with five colored status LEDs to help personalize the speed control�s settings

Robust 3-amp BEC for strong and fast steering response under any condition

Highly water-resistant case

Cross-cut ESC heat sink for reduced weight and efficient cooling

Meets RoHS compliance and includes 120-Day Warranty

Designed, assembled and tested by Novak in Irvine, Calif., using globally sourced components



ESC Specifications:

Input Voltage: 2S Li-Po cells, 2S Li-Fe cells or 4-6 Ni-MH cells (1.2V/cell)

ESC Footprint: 1.16x1.47� (29.5x37.3 mm)

Weight (without wires): 1.29 oz. (36.6 g)

Design: Sensor-based

Motor Limit: All 3.5-turn (540-sized) and all 4.5-turn (550-sized) sensored brushless motors

On-Resistance (brushless): 0.00040 ohms @ 25�C trans. temp.

BEC: 6.0 volts DC / 3.0 amps

Status LEDs: 5

Power Wires: 14G Super-Flex Copper-Strand Silicone Wire



Motor Specifications:

Number of turns: 4.5T

Design: Sensor-based (compatible with any sensored brushless ESC, such as Havoc Pro, GTB & Havoc 3S)

Input Voltage: 2S-3S Li-Po (#3504 & #3505)

Magnet: One-piece, multi-pole Neodymium

Watts: 890 (#3504)

Kv (unloaded): 5,000 (#3504)

Motor size: 2.84�, 72.1mm (length); 1.41�, 35.8mm (diameter)

Shaft diameter: 5mm

Motor weight: 10.1 oz. (286.3 grams)




Harga murah aja Rp 2950000 .- nego ..

Pembayaran lewat transfer BCA

Bisa Kirim Ke Luar Kota/Pulau Lewat Paket JNE/TIKI

Kalau berminat hubungi di no HP 081332682262

Bisa COD local Surabaya saja....
